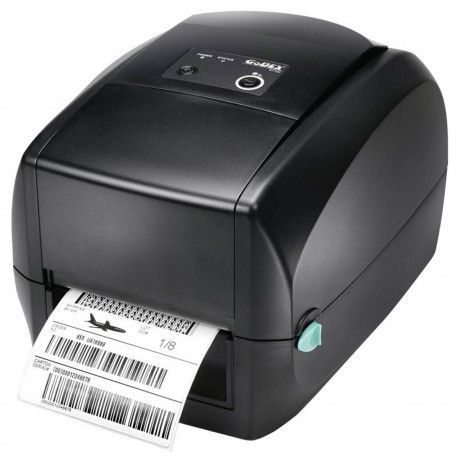

IMPRESORA DE ETIQUETAS GODEX RT700 TT 203ppp 108mm 127mm/seg RS232 USB Ether

301,61 €
Impresora de etiquetas de transferencia térmica con triple interface.
3 años de garantía.

Comprados juntos habitualmente

Información del producto

GoDEX RT700 Specifications

Print Method Thermal Transfer
Resolution 203 dpi (8 dots/mm)
Print Speed 5IPS (127 mm/s)
Print Width 4.25" (108mm)
Print Length Min. 0.16” (4 mm); Max. 68” (1727 mm)
Processor 32 bit RISC CPU
Memory 8MB Flash (4MB for user storage) / 16MB SDRAM
Sensor Type Fixed transmissive sensor and reflective sensor, central aligned
Adjustable reflective sensor (full range)
Media Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max.
Thickness: 0.003” (0.06 mm) Min. - 0.01” (0.2 mm) Max.
Label roll diameter: Max. 5” (127 mm)
Core diameter: 1”, 1.5” (25,4 mm, 38,1 mm)
Ribbon Types: Wax, wax/resin, resin
Length: 981’ (300 m)
Width: 1.18” (30 mm) Min. - 4.33” (110 mm) Max.
Ribbon roll diameter.: 2.67“ (68 mm)
Core diameter: 1” (25.4 mm)
Printer Language EZPL, GEPL, GZPL auto switch
Software Label design software: GoLabel (for EZPL only)
Driver: Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003 & 2008 &2012、 MAC、 Linux
DLL: Win CE , .NET , Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Android
Resident Fonts Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
TTF fonts:TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable
Download Fonts Bitmap fonts: 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts: 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001)90∘,180∘,270∘, rotatable and 8 times expandable in horizontal and vertical directions
TTF fonts: 90°, 180°, 270° rotatable
Barcodes 1-D Bar codes:
Code 39, Code 93, EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Postnet, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, ISBT -128, Code 32
2-D Bar codes:
PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code, Code 49, Codablock F , TLC 39
Code Pages CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255,1257
Unicode UTF8、UTF16BE、UTF16LE
Graphics Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software

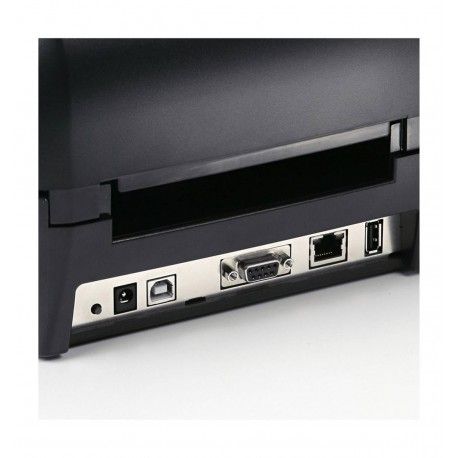

Interfaces USB 2.0
Serial port: RS-232 (DB-9)
Ethernet 10/100 Mbps
Control Panel Two dual color LEDs (Ready & Status)
Control key: FEED
Power on/off button
Calibration button
Real Time Clock Standard
Power Auto Switching 100-240VAC, 50-60Hz
Environment Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C)
Humidity Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing.
Agency Approvals CE(EMC)、FCC Class A、CB、cUL,EAC、KCC、 BIS、CCC
Dimension Length: 11.0” (280 mm)
Height: 7.3” (186 mm)
Width: 8.3” (210 mm)
Weight 5.29 lbs (2.4 Kg), excluding consumables
Options USB Device + Parallel interfaces (factory install)
Guillotine Cutter
Label Dispenser
External label roll holder for 10” (250 mm) O.D. label rolls
External label rewinder
RT700
